HW-8L Road Marking Machine

HW-8L Road Marking Machine

Factory Direct
Training on Arrival
One-year warranty
Painting Type: Cold Paint
Painting Width: 70-500mm
Power: 7hp

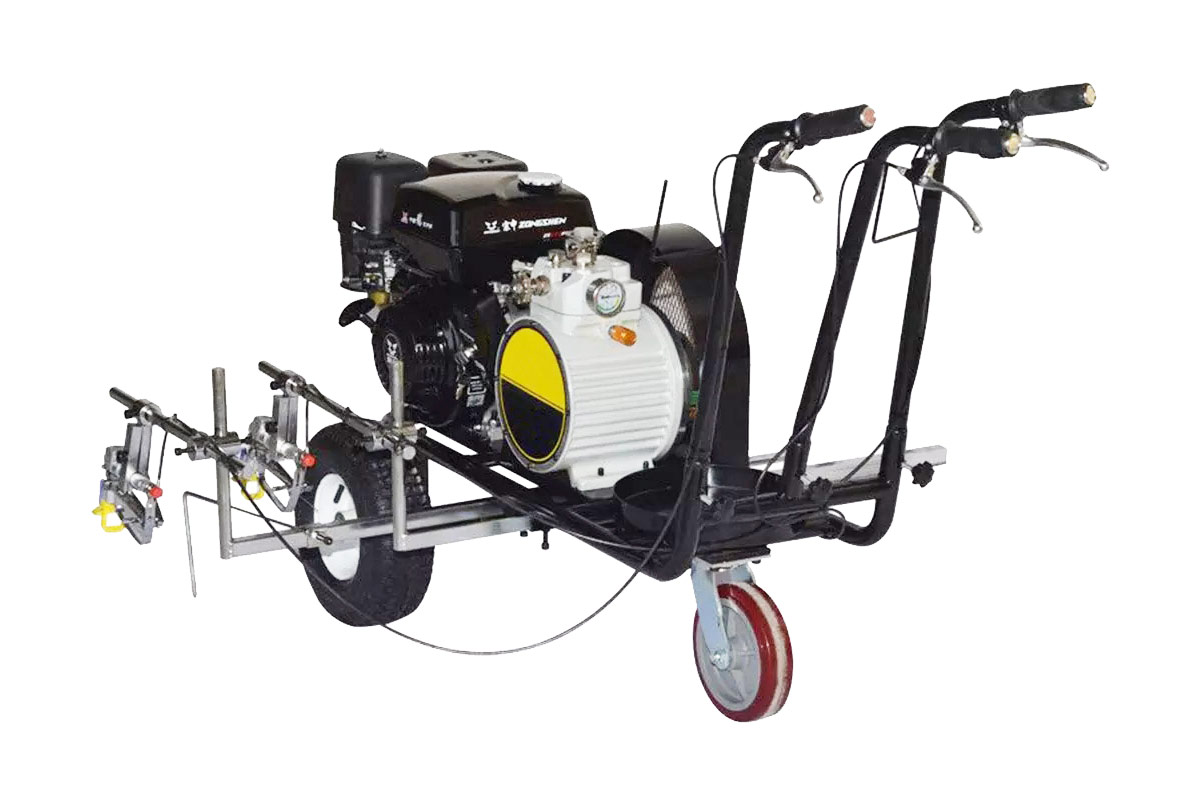

Product Pictures

Product Introduction

HW-8L Road Marking Machine is suitable for marking lines on the plastic running tracks or artificial lawns.


1. Airless spraying paining technology for which the high-pressure pump is drivenby a gasoline engine as been adopted in the line marking machine to create clear,smooth, saturating and even limes, providing a high working efficiency;

2. Both sides of the spraying gun are equipped with a limiting disc plates, ensuringthe line free of raw edges, such plates may be lift through a pulling line insteering, turning flexibly;

3. The spraying gun may be conveniently dismantle different nozzles and control theline width, suitable for common airless spraying for marking or labels;

4. Road line marking machine runs by pushing,with convenient turning ,reliable orientation and flexible turning.


ModelHW-8L
TypeDouble nozzles
Power7hp
Unloading flow8L/MIn
Max output pressure30mpa
HIgh pressure pipe strength40mpa
HIgh pressure pipe length6*2m /10*10m
Max spray width450mm
Weight128kg
